SynCut 150B

SynCut 150B

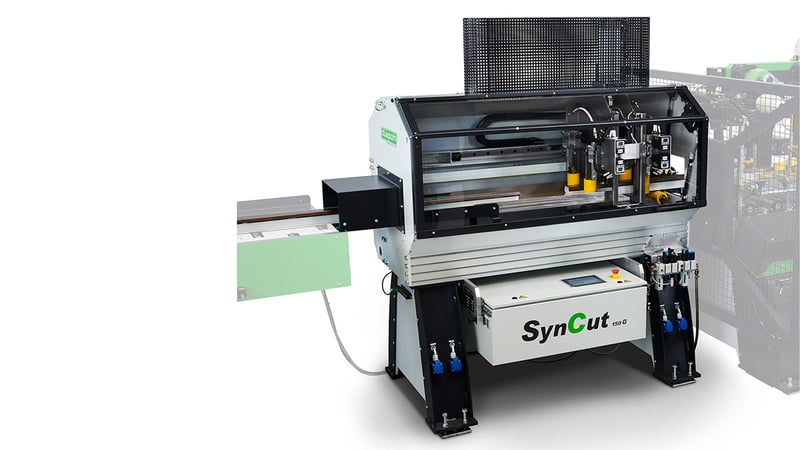

SynCut 150B is a synchronized flying cut-off saw to separate profiles while in motion. Its operating mode combines high dynamics with low tolerances. It works independently from the precedent machine und delivers high quality cutting results thanks to its unique design.
Separating systems

Ideal for

  • Plinth panels & skirting boards
  • Picture frames
  • Other profiles made from wood (composites)

info-icon

Would you like to receive a free consultation to find out if SynCut 150B is the solution you need?

Contact us for a non-binding, first conversation.

Description


One of its major advantages, is that SynCut 150B works without any profile clamping. Using this cutting unit, you will not be bothered by undesired marks on the wrapped profile or even deterioration of its shape. Thanks to the highly dynamic conception of this machine the sawing unit will always move synchronically to the profile. Since the cutting table also runs synchronically, the cutting quality stays high-class even when separating lighter profiles.

The intelligently programmed control unit makes sure that the cutting point will be traced independently from the length of the work piece. It is not necessary to manually program the saw after each change of profile geometry. This is why it is easy to operate and highly efficient in terms of set-up.

Of course, we have not only designed it to be very user-friendly, but also considered quality aspects. The high-quality cut will convince anyone who has some experience and compares flying cut-off saws. The smart control unit is an important component which enables the result and a long service life of the tools.

Inside the machine, the profiles are supported by a synchronized transport belt, which adapts automatically to the current transport velocity.

The easy-to-use TouchScreen control panel is a standard element of the SynCut 150B. The control system includes the automation of several partial processes like the monitoring of the compressed air, the cut counter or the lubrification monitoring. For the user, this means easier handling and higher process safety.

The standard equipment on this series of machines includes:

  • Touch Screen control panel for easier handling and higher process safety

The optional equipment on this series of machines includes:

  • Second transport belt for additional stabilisation

  • Outlet belt

Highlights

  • High cutting quality

  • Works without profile clamping, no marks on the surface, no deformations

  • Available as retrofit for existing lines

  • Highly dynamic cutting process

  • Sawing unit always synchronized to profile

  • Control unit recognizes cutting point automatically

  • Optimal cutting quality even for smaller work pieces

  • No re-cutting, not of the leaving nor of the following profile

  • Another cut is programmable within a profile
