DrawerLine 300V

DrawerLine 300V

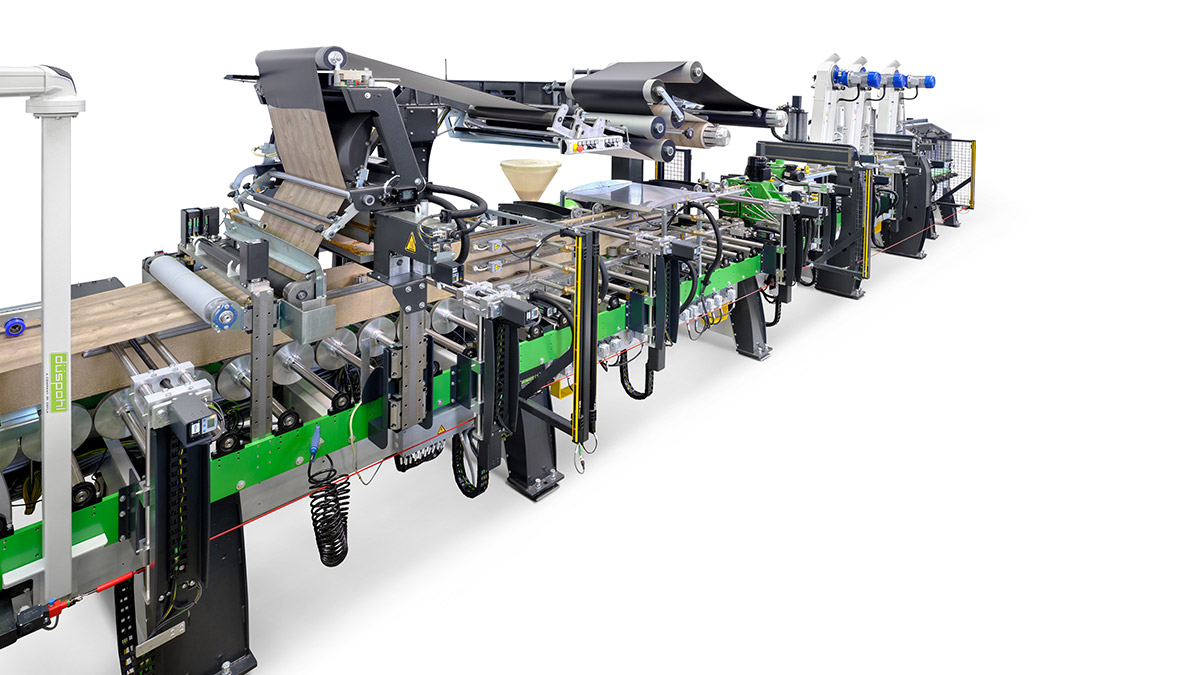

Discover the new solution for vertical 360° wrapping of drawers and parts of furniture bodies: DrawerLine 300V by Duespohl.
Thanks to the minimised set-up times, you benefit from higher output while constantly achieving best quality results.
Profile wrapping line wood (composites)

Ideal for

  • Drawers
  • Furniture bodies

Would you like to receive a free consultation to find out if DrawerLine 300V is the solution you need?

Contact us for a non-binding, first conversation.


Set-up within max. 6 minutes
The automatic format adjustment enables you to change from the minimum profile height to the maximum height - and vice versa - within no more than six minutes. At the push of the button, all components involved move to their defined position. Since you spend less time on set-up, there is much more time available to produce a significantly higher output.
To make sure that the frequent change of decor material will not steal your time, we have equipped DrawerLine with the automatic reel changer.

Glue application by Slot Coater
DrawerLine 300V applies the hot melt glue using the internationally renowned slot coater. In contrast to the application of PVAC glue, this means that you work with a constant dosing and 100% solid content.
A further advantage is that the wrapped panels are immediately ready for further processing.

Wrapping 4.0
Using a recently developed PlugIn, which we can specifically adapt to your individual ERP, we transfer all important parameters of the machine to your computer.
This enables you to track settings and conditions of production in relation to every job - an important prerequisite for successful production management. Using the collected data you also create a basis for the ideal load factor.

The standard equipment on this series of machines includes:

  • Automatic reel changer to avoid interruption of production

  • Patented SlotCoater

  • SynCut 330V for dynamic separation and an optimal cut

  • Plugin to provide you with operating data as a basis for further process optimisation

  • Programming of recipes also via an external computer

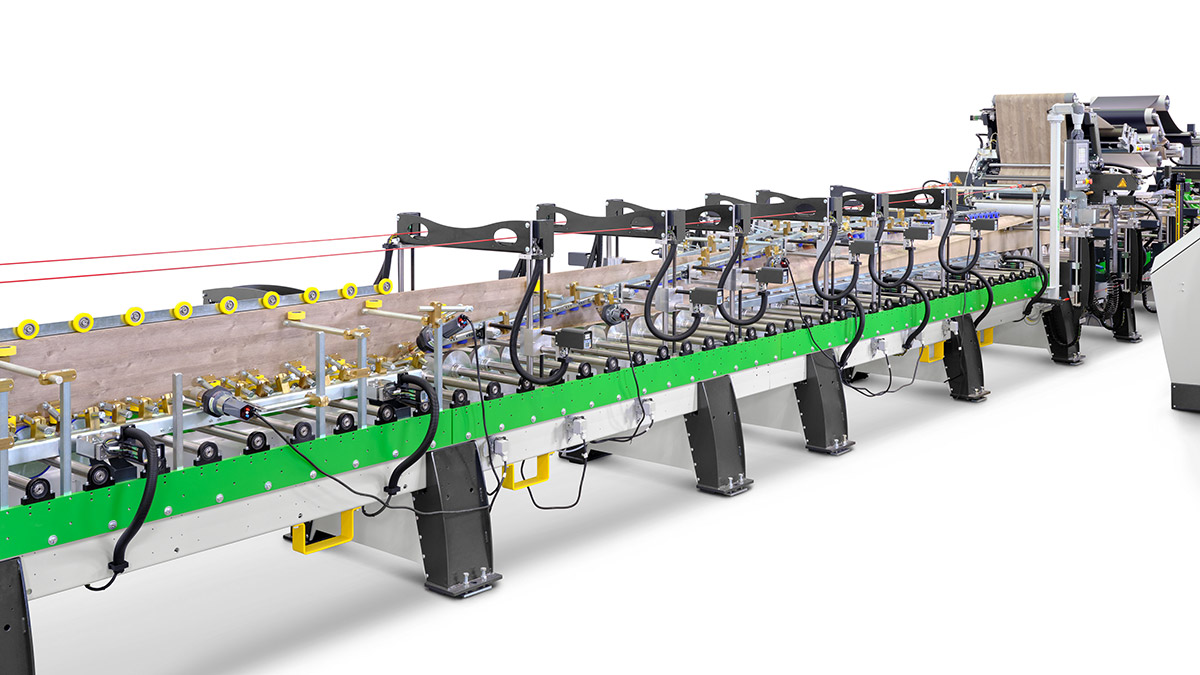

Wrapping zone

Featuring automatic format adjustment for quick and fast set-up


Automatic Reel Change

Featuring ReelChange Wood for less downtimes and higher productivity

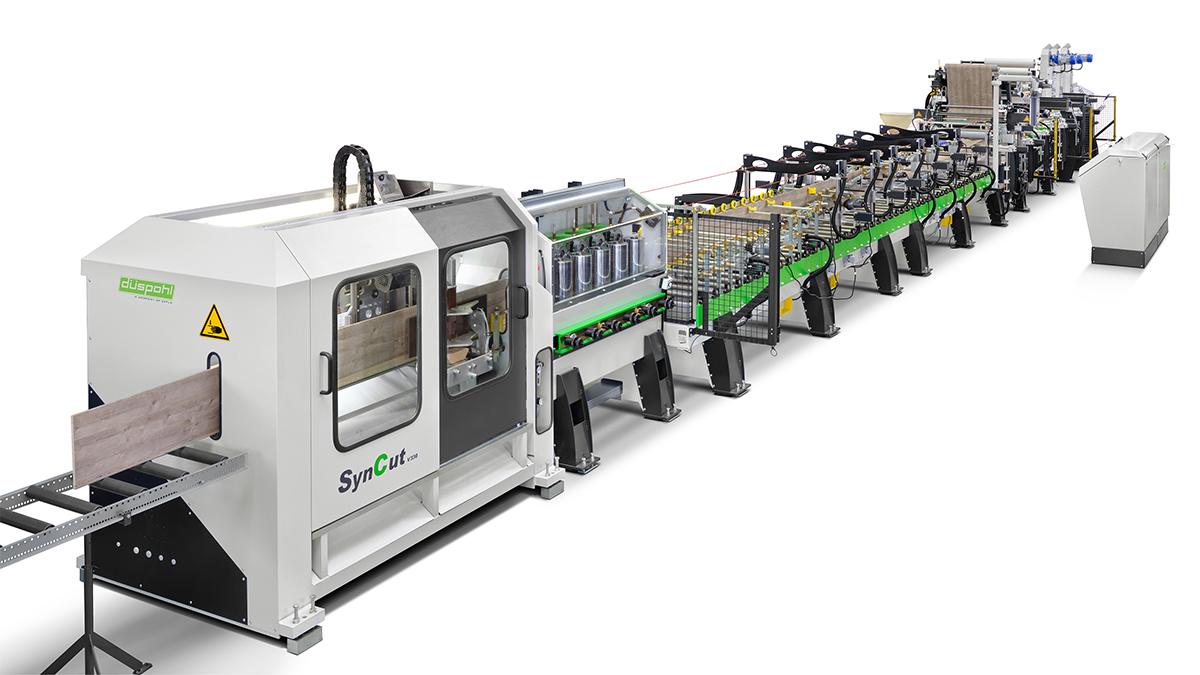

Based on a PowerWrap, featuring automatic reel change system, internationally renowned SlotCoater and SynCut 330V


  • Set-up time max. 6 minutes thanks to automatic format adjustment

  • Minimal consumption of glue due to SlotCoater application and constant dosing

  • 360° wrapping

  • Transport speed up to 100 m/min

Final product samples
